General info

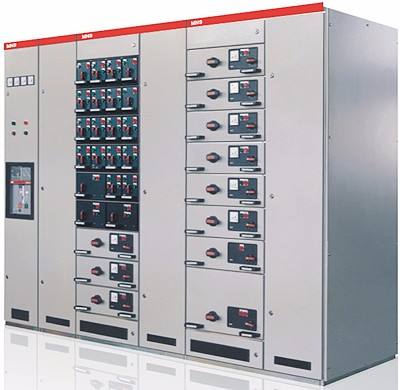

MNS low voltage withdrawable switchgear is a combined low-voltage switchgear, which meets the standards of IEC439, GB7251 and so on.
With high technical performance, main parameters can reach the contemporary international advanced technology level.
Rated insulation voltage 600-1000v
Rated working voltage 380-660v
Level busbar current rating ≤3150A
Nominal current of vertical bus 1200A
Rated short-time peak current 105KA
Protection grade IP30/IP40/IP54
Drawing

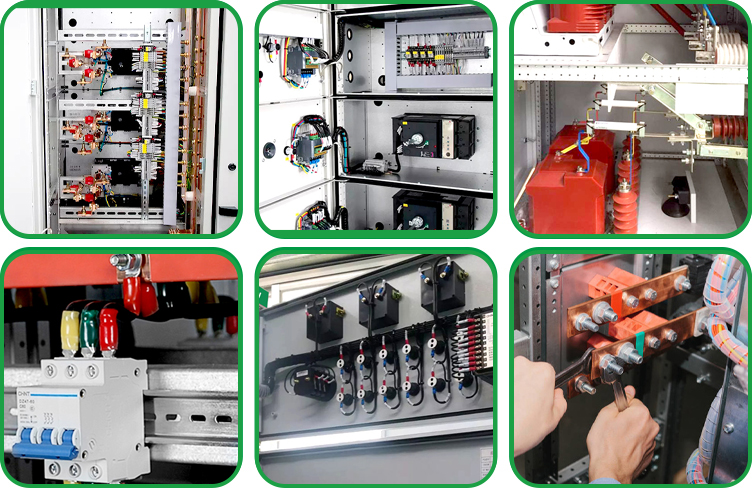

Structural features:
The product design has fully considered the requirements of the majority of power users and design departments, which can meet the needs of the developing power industry such as the centralized control of capacity increase power, convenient installation and maintenance, and shortened accident treatment time, etc., which is safe, economical, reasonable and reliable.The product has the characteristics of strong connection ability, high breaking ability, good dynamic stability, flexible electrical scheme, convenient combination, strong series and practicability, novel structure and so on.At the same time, it can be combined with drawers and cabinets for mixed use.
Switch cabinet cabinet structure is composed of profiles (module E=25mm) assembly.As a result of using lock since tapping screw and 8.8 class high strength bolt for connection, thus high precision cabinet, good patience.
Details
conditions of use
1.The elevation shall not exceed 2000m;
2.The ambient air temperature is not higher than +40℃, and the average temperature within 24 hours is not higher than +35℃, the ambient air temperature is not lower than -5℃;
3.Atmospheric conditions the air is clean, the relative humidity does not exceed 50% when the temperature is +40℃, and the relatively high relative humidity is allowed when the temperature is relatively low.
For example, at +20℃, it is 90%;
4.No fire, explosion risk, serious pollution, chemical corrosion and violent vibration of the place;
5.The inclination with the vertical plane shall not exceed 5 degrees;
6.This product is suitable for the following temperature transportation and storage: -25℃~55℃, in a short time (no more than 24h) no more than +70℃.
order instruction:
1. Schematic diagram of main circuit or electrical schematic diagram
2. Arrangement and layout
3. Model, specification and quantity of main components.
4. Incoming and outgoing wire method and cable specification, etc
5. If bus connection is required between the devices, bus connection and height from the ground shall be provided.
6. Other ordering requirements
Product Tags:
|
|

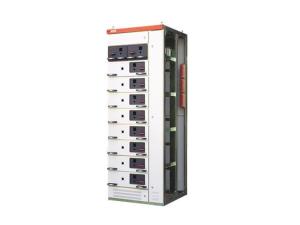

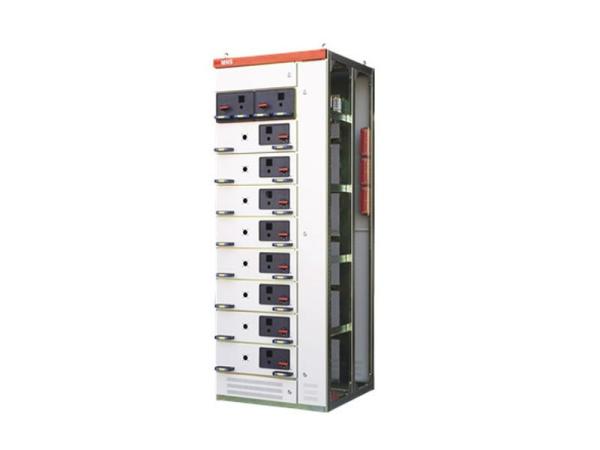

MNS sf6 6.6kv lv solid insulated outdoor switchgear Images
|
